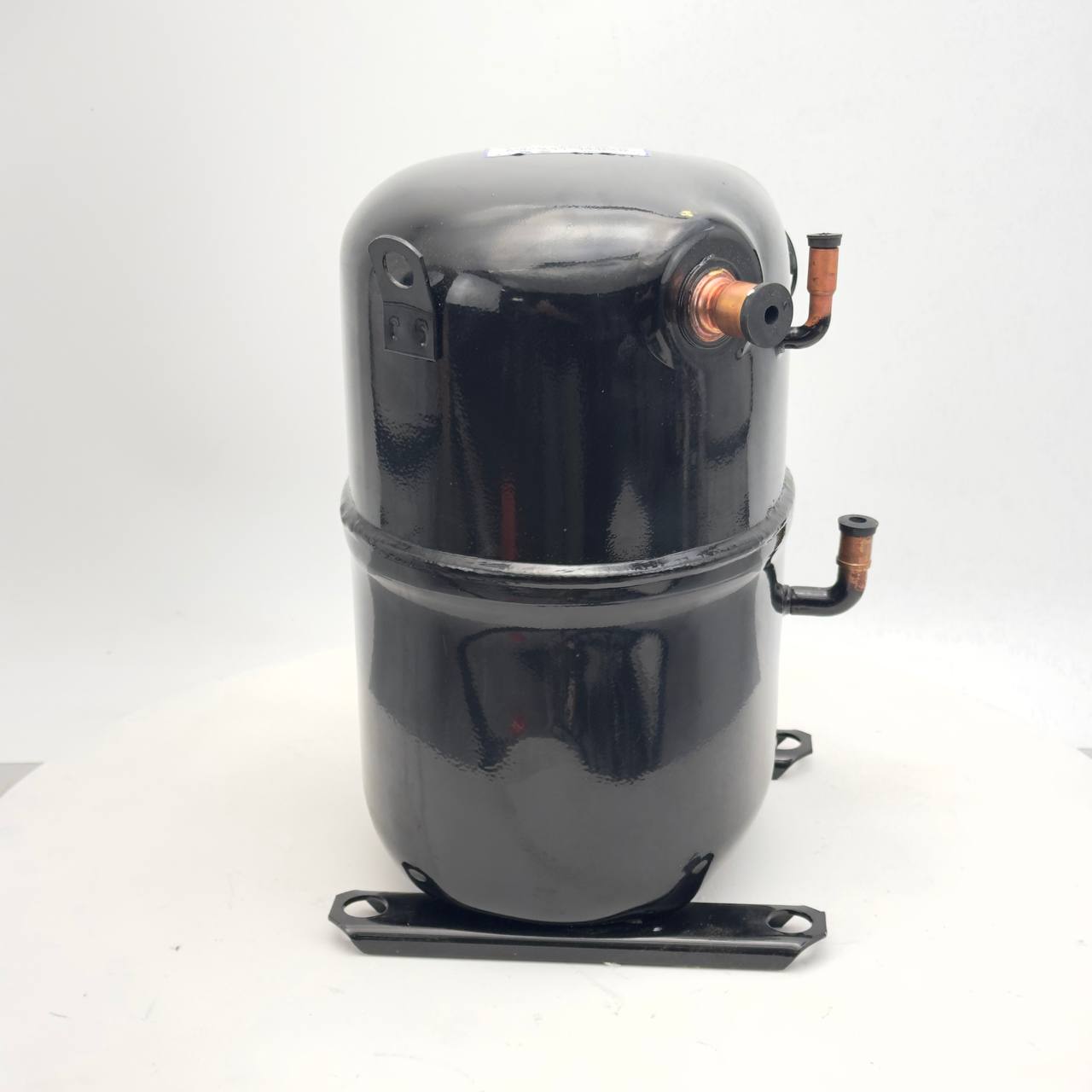

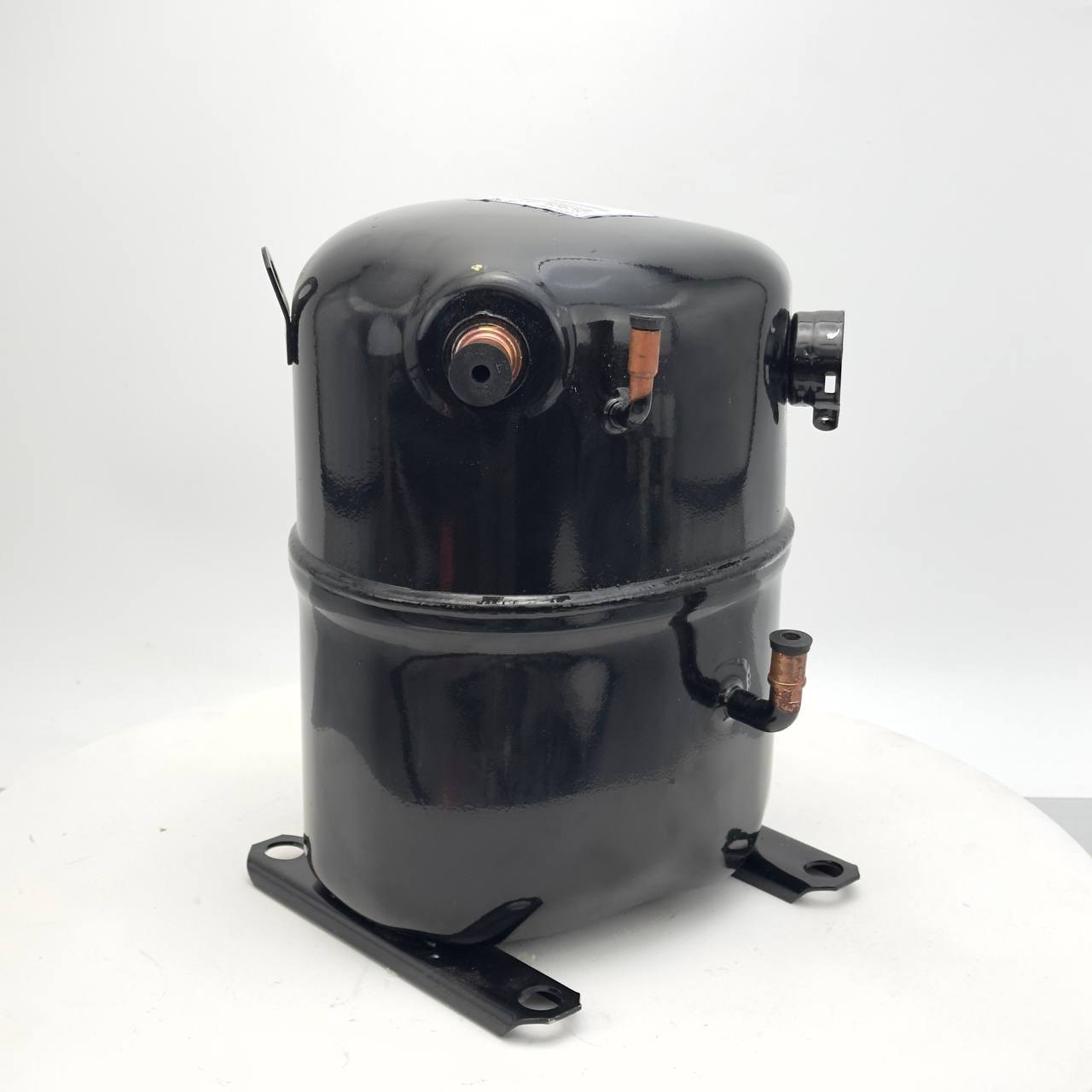

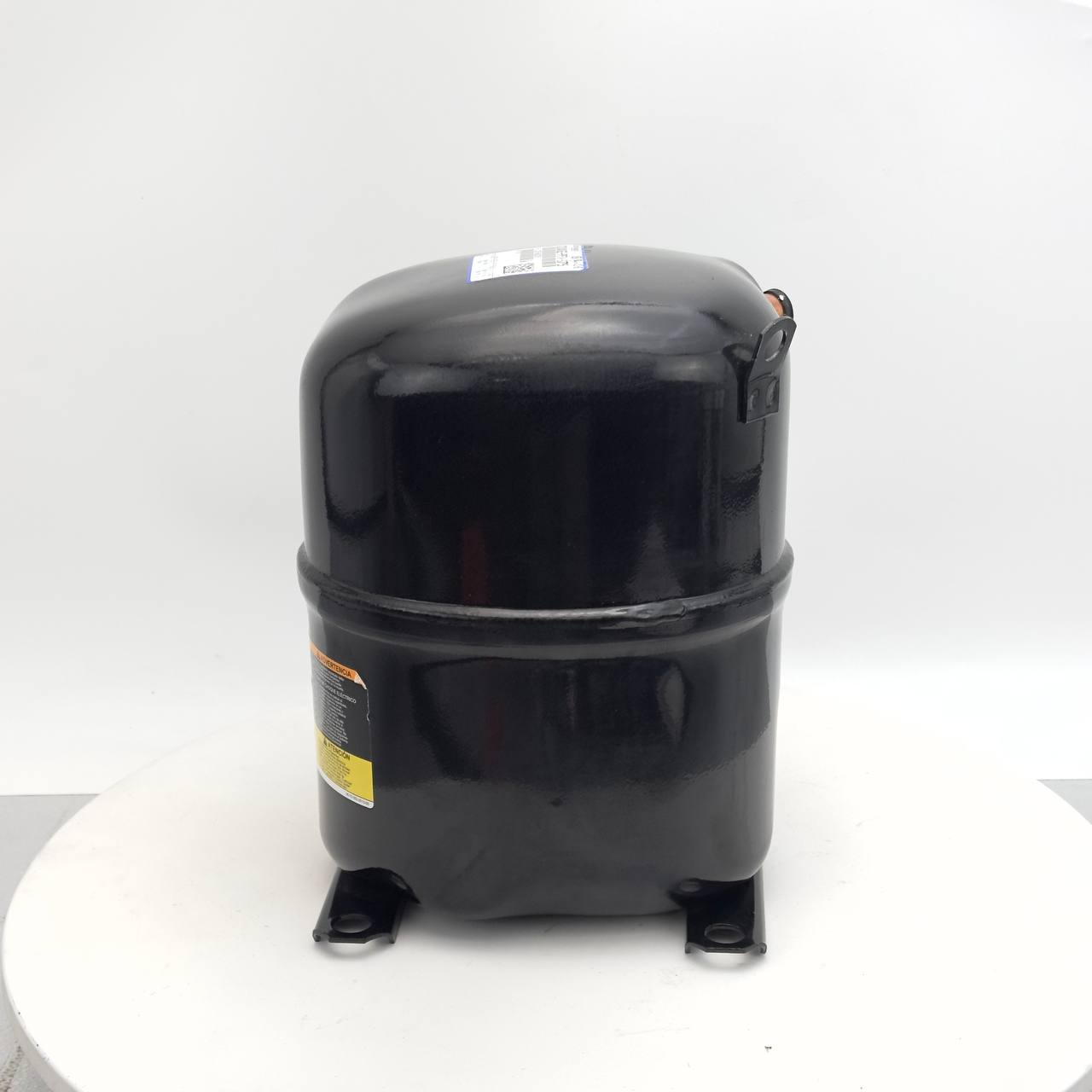

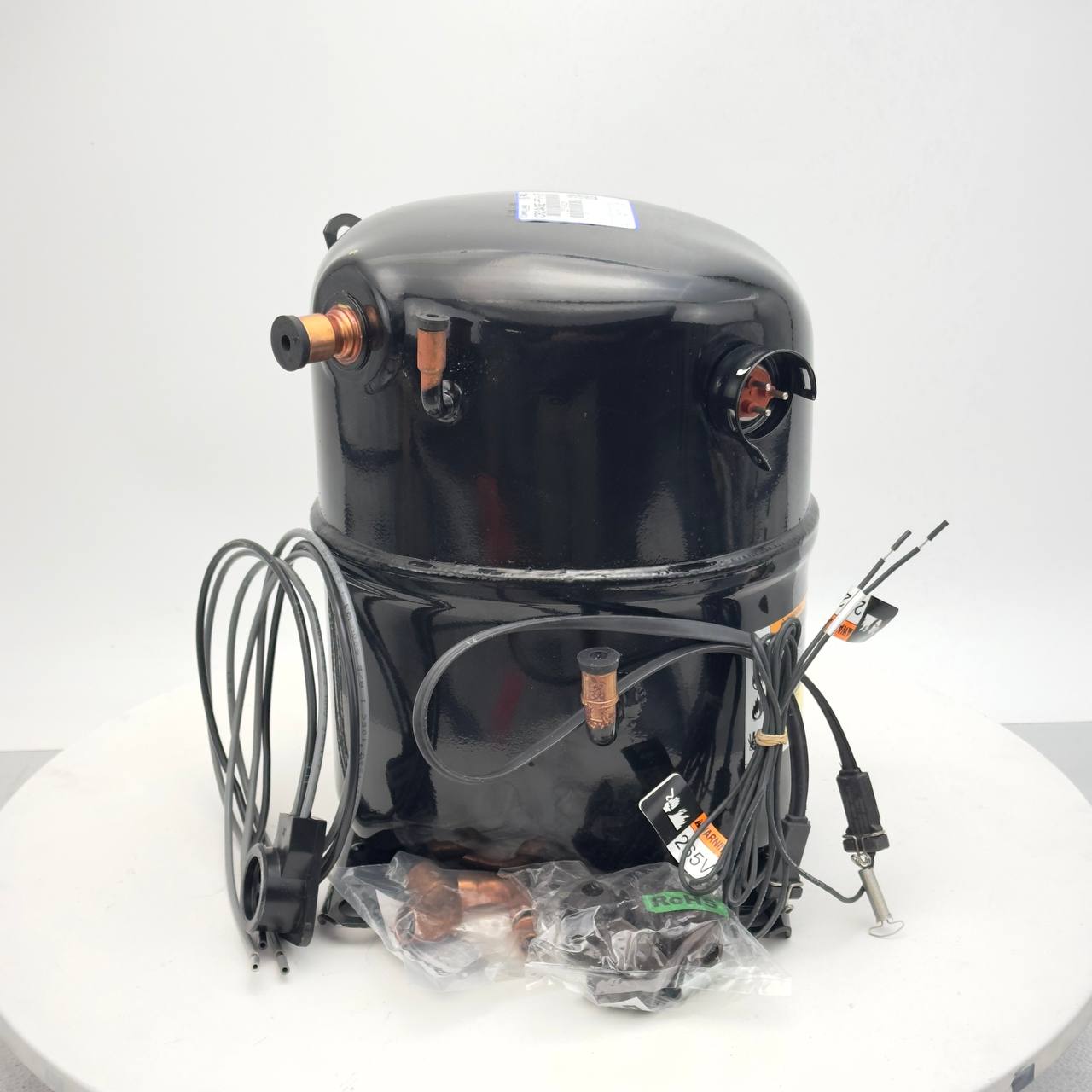

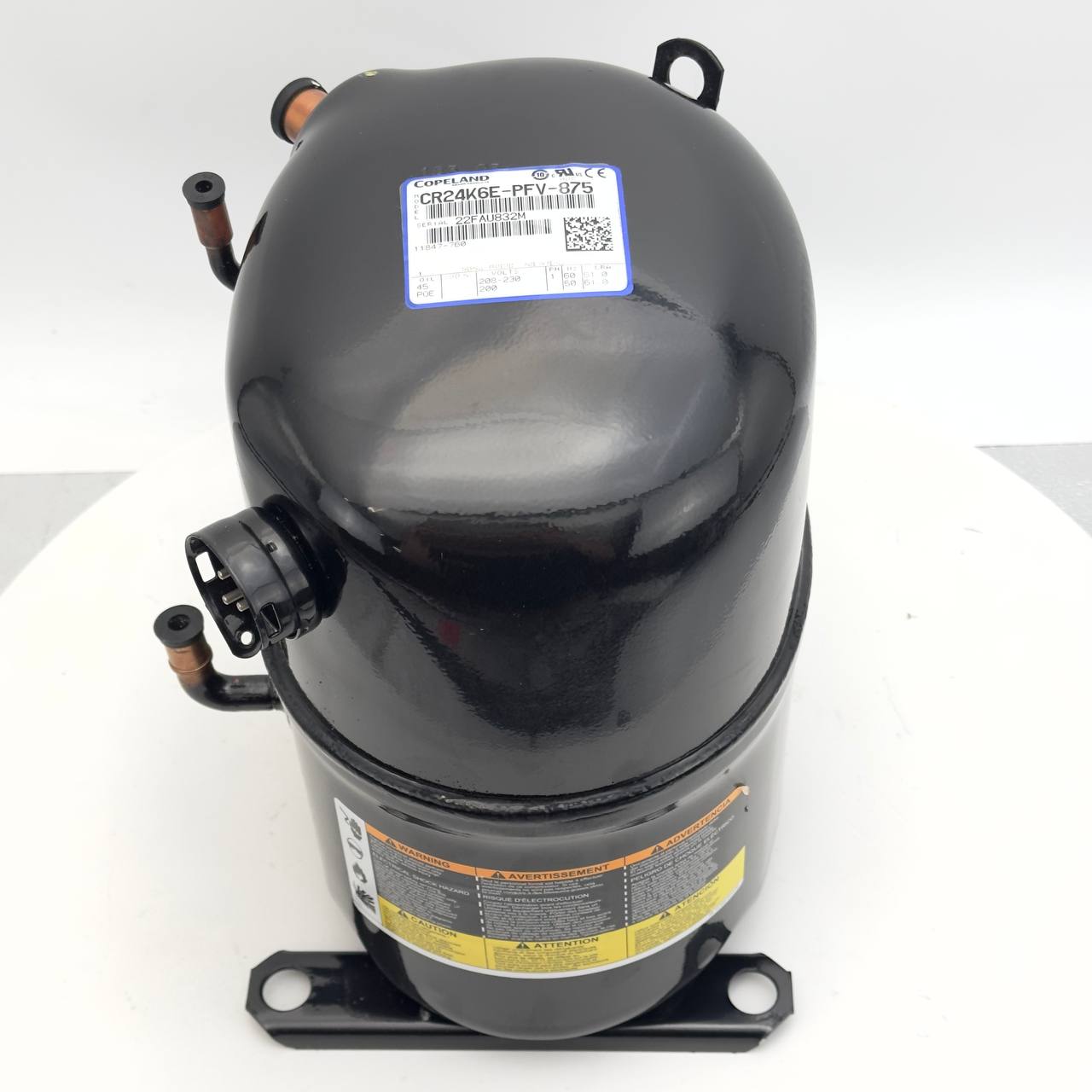

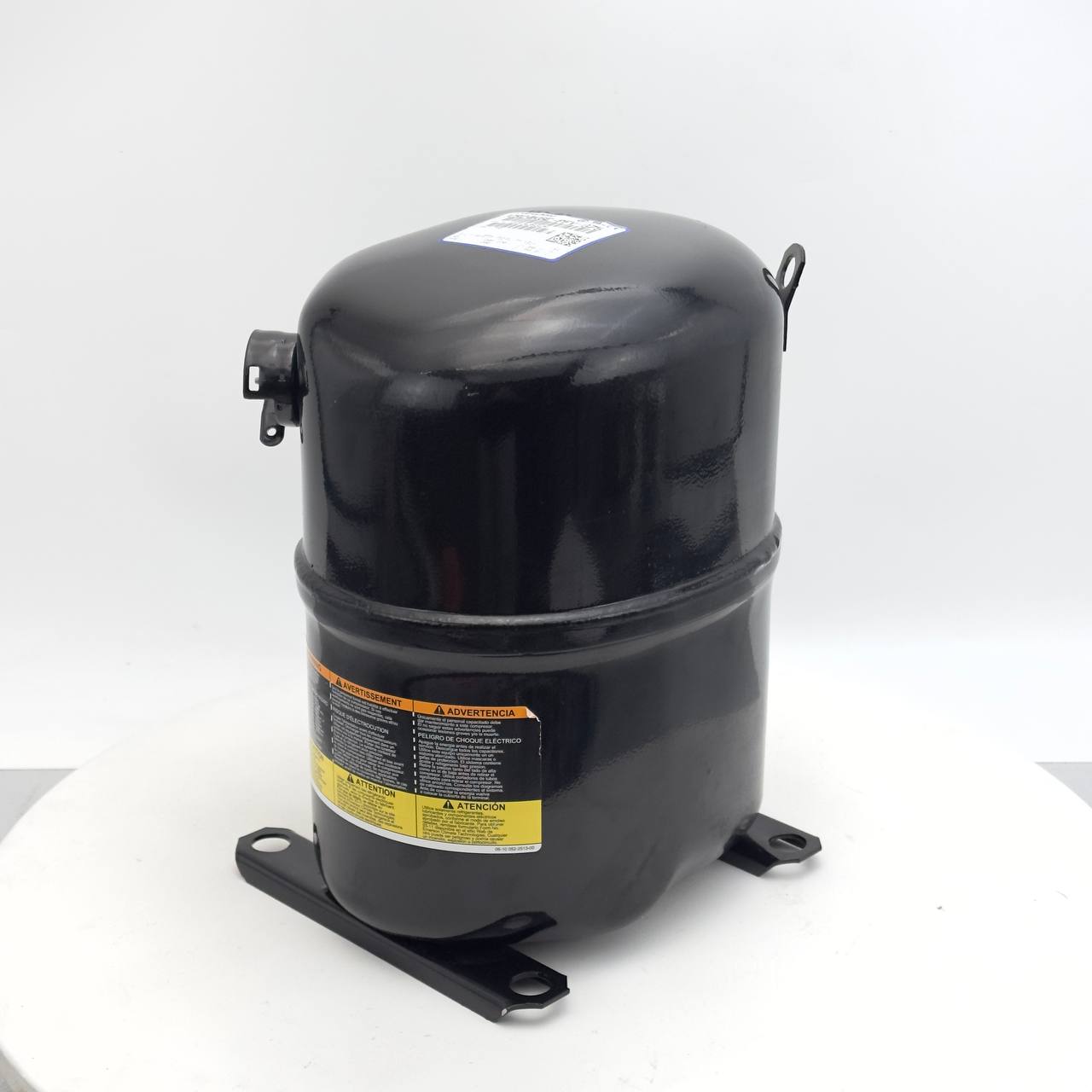

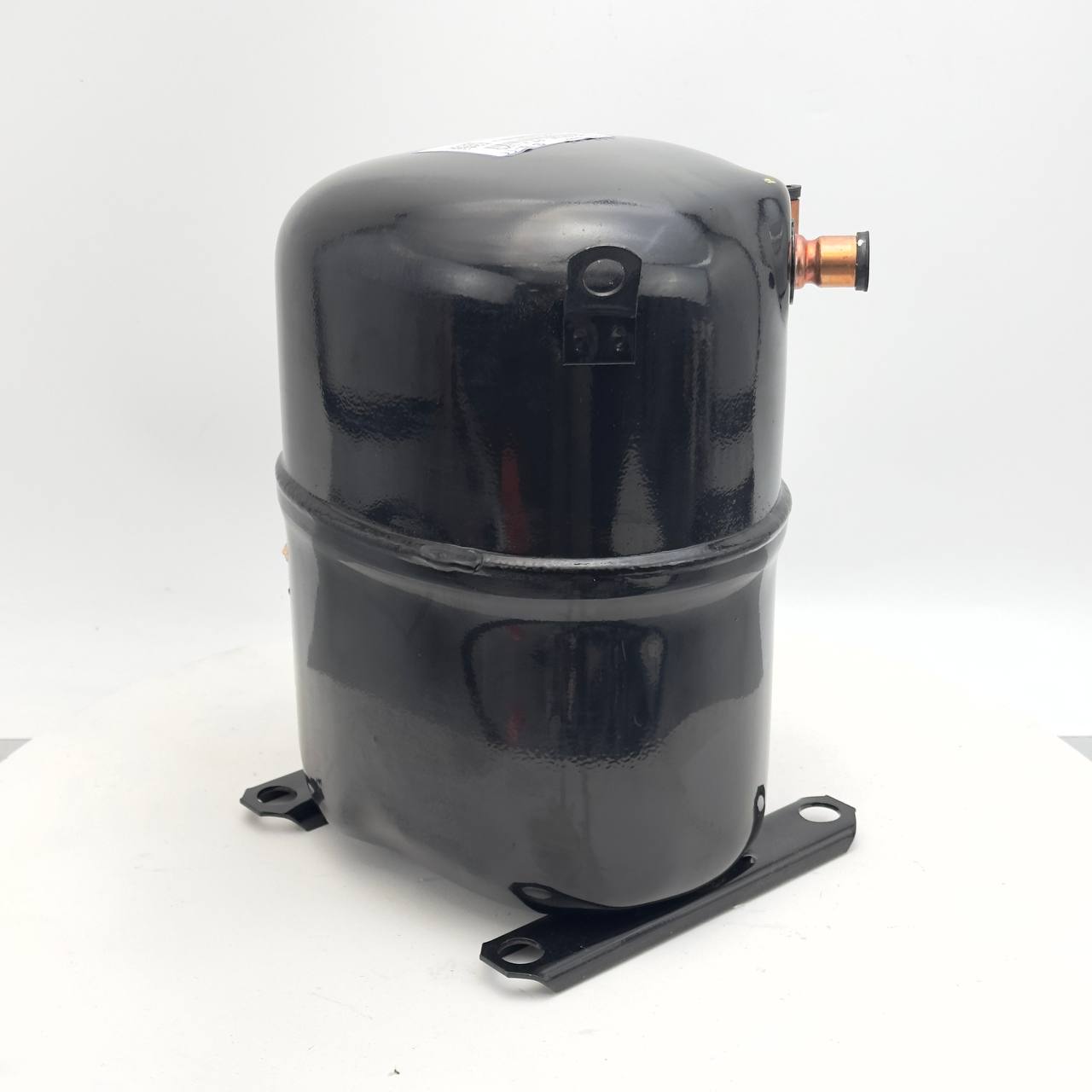

CR24K6E-PFV-875 | OEM Copeland® High Temp Hermetic Compressor 208-230
Part Number: CR24K6E-PFV-875
Condition: New
Manufacture/Brand: Copeland
Description: High Temp Hermetic Compressor 2 Ton, 208-230 Vac
|
Weight |
63 |
|
Amps |
8.1-9.5 |
|
BTU Output |
22,600-31,500 |
|
Compressor Housing |
Hermetic |
|
Compressor Type |
Reciprocating |
|
Cubic Measurement |
0.7678 |
|
Cycle/Hertz |
60 Hz |
|
Dimensional Weight |
8 |
|
Discharge Connection Type |
Stub |
|
Evaporating Temperature |
45°F (7.22°C) |
|
Height |
13.44 |
|
Length |
10.23 |
|
Locked Rotor Amps (LRA) |
61 |
|
Mass Flow (lbs/hr) |
275 lbs./hr.; 329 lbs./hr.; 391 lbs./hr. |
|
Mounting Dimensions |
7.5" x 7.5" x 13.81" |
|
Oil Charge Initial (oz.) |
45 Oz. |
|
Oil Type |
Mineral (MO) or Polyolester (POE) |
|
OPT Code |
CR24K6EPFV875 |
|
Phase |
Single |
|
Prop 65 |
Yes |
|
Protection |
Yes |
|
Rated Load Amps (RLA) |
11.2, 12.4 |
|
Refrigerant |
R-407C |
|
Return Gas Temperature |
65°F (18.33°C) |
|
Suction Line Fitting Type |
Sweat or Braze |
|
Suction Line Size (OD) |
3/4" |
|
Voltage |
208-230 VAC |
|
Country of Origin |
USA |
|
Discharge Connection Size (OD) |
1/2" |
|
Substantial Commodity |
Steel |
About the Manufacturer – Copeland:
Copeland is a globally recognized leader in the design and manufacturing of advanced compressor technologies for refrigeration and air conditioning systems. With a legacy spanning over a century, Copeland is known for its innovation, engineering excellence, and commitment to energy efficiency.
Originally established in the early 1900s and now part of the Emerson Group, Copeland has become synonymous with high-performance scroll and semi-hermetic compressors used in commercial, industrial, and residential applications. Their products are trusted by HVAC professionals and system manufacturers worldwide for delivering reliable climate control and sustainable performance.
