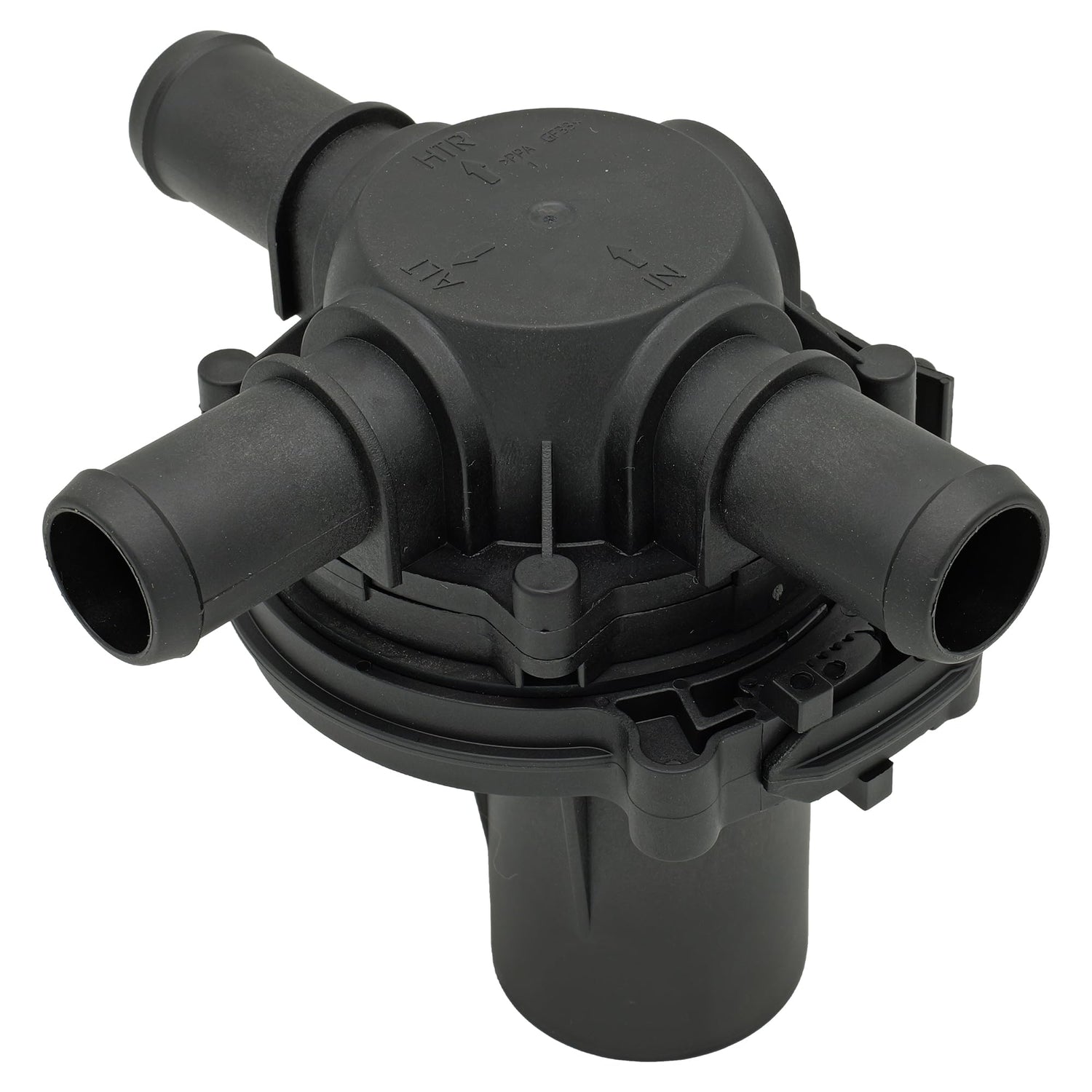

52014971AB | Genuine Mopar® Coolant 3 Way Valve For Ram

1. Temperature Regulation

• The valve directs coolant flow to control how much cooling or heating different parts of the system receive.

• Example: In a car engine, it helps the engine reach and stay at its optimal operating temperature (usually around 90°C).

Benefit: Keeps performance stable and reduces emissions or energy waste.

2. Faster Warm-Up

• When the engine (or battery) is cold, the 3-way valve can bypass the radiator, circulating coolant only within the engine or battery loop.

• This reduces warm-up time.

Benefit: Faster cabin heating in cold weather and improved fuel efficiency or battery performance.

3. Efficient Cooling Control

• When the temperature gets high, the valve redirects coolant through the radiator or chiller for maximum heat removal.

• It can also split or mix flows to maintain precise temperature targets.

Benefit: Prevents overheating and improves thermal balance.

4. Multi-System Thermal Management

• In hybrid and electric vehicles, one coolant loop may serve the battery, motor, inverter, and cabin heater.

• The 3-way valve allows selective cooling or heating of each component depending on need.

Benefit: Smart control over multiple subsystems with one coolant circuit.

5. Energy Efficiency

• Instead of running multiple pumps or separate cooling systems, one system with a 3-way valve can route coolant efficiently.

Benefit: Lower energy consumption, fewer components, and simplified plumbing.

6. Safety and Longevity

• By maintaining components within safe temperature limits, it prevents thermal damage to sensitive parts like the battery, motor, or electronics.

Benefit: Longer component life and improved reliability.

1. Engine or Battery Overheating

• If the valve is stuck closed or not diverting flow properly, coolant may not reach the radiator or chiller.

• This leads to engine overheating (in combustion cars) or battery/inverter overheating (in hybrids and EVs).

Typical signs:

• High temperature gauge reading

• Overheat warning light

• Reduced power or limp mode (in EVs/hybrids)

2. Poor Cabin Heating or Cooling

• If coolant can’t flow correctly through the heater core or chiller, cabin climate control won’t work right.

• You might get no heat or weak A/C performance, even though the rest of the system seems fine.

Example:

• Cabin blows cold air when heat is on (valve stuck in radiator loop).

• A/C doesn’t cool effectively because coolant isn’t reaching the chiller.

3. Slow Engine Warm-Up

• If the valve fails open, coolant constantly circulates through the radiator, even when cold.

• This makes the engine (or battery) take much longer to warm up.

Result:

• Poor fuel efficiency

• Increased emissions

• Delayed cabin heat in cold weather

4. Error Codes or Warning Lights

Modern vehicles (especially EVs and hybrids) monitor valve position electronically.
A failing 3-way valve may trigger:

• Check Engine Light or Hybrid System Warning

• Diagnostic Trouble Codes (DTCs), such as:

  • P26A3, P26A7, P26A9, etc. (common on some Toyota/Lexus hybrids)

  • These indicate coolant flow control valve performance issues.

5. Coolant Leaks

• Some 3-way valves use plastic housings or seals that can crack or wear out.

• You might notice:

  • Coolant dripping under the car

  • Low coolant level warnings

  • Sweet smell from engine bay

6. Unusual Noises or Operation

• If the valve is electrically controlled, it might make clicking or buzzing sounds when it’s trying to move but can’t.

• In some cases, the actuator motor fails, or debris jams the valve.
