Vickers  |  SKU: 02-152440-8

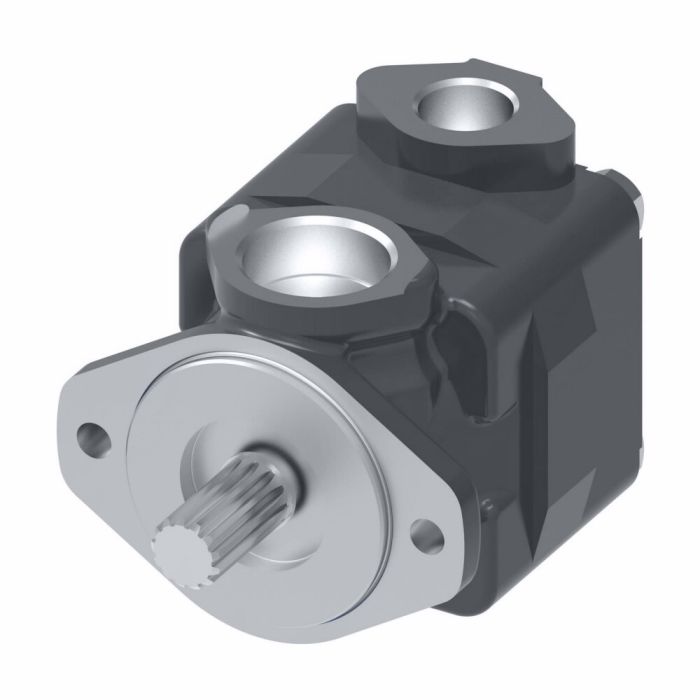

02-152440-8 | Genuine Vickers V20F Hydraulic Vane Pump

$97500
Shipping calculated at checkout.

Need a quote?

Contact us — we’ll send you a quick and accurate offer!

  • help@forcetruckparts.com
  • +1 (828) 233-5509

Return Within 30 Days
  • The item can be returned within 30 days from the date of receipt.
  • Not satisfied? Contact us by email or phone for return instructions or exchange

Shipping Terms
  • Enjoy free shipping on orders over $100.
  • Orders placed before 6:30 PM (EST) are shipped the same day.

365 Days Warranty!

Buy safely, Returns within 30 days.

Description:
A Hydraulic Vane Pump 02-152440-8 is a type of positive-displacement hydraulic pump that uses sliding vanes mounted in a rotating rotor to move and pressurize hydraulic fluid.

Part Number: 02-152440-8
Condition: New
Manufacture/Brand: Vickers

Fits 02-152440-8 For wide range of heavy-duty

SEALS TYPE -
STANDARD SEAL
PUMP TYPE V
VANE PUMP
Series 20
SERIES DESIGNATION
Cover Type F
FLOW CONTROL VALVE COVER
Mounting type 1
2 BOLT FLANGE SAE-A SIZE
IPM FRAME SIZE SQUARE V20
V20 Single Pump
Inlet Port Type D
1.312-12UN-12B STR.THREAD
Ring Capacity 9
9 GPM
Outlet Port Type S
COVER D,COVER STANDARD - 1.062-12 UN-2B THREAD. F COVER - PRESSURE PORT -.750-16 UN-2B THREAD , TANK PORT-1.0625-12 UN-2B THREAD
Shaft Seal And Bearing -
SINGLE LIP SEAL&SEALED BEARING
Shaft type 38
11TEETH 16/32 FLAT ROOT SIDE FIT


Purpose of using 02-152440-8:


  • The pump draws hydraulic fluid from the reservoir.
  • A rotating rotor moves the vanes inside the pump housing.
  • The vanes create chambers that draw hydraulic fluid into the pump.
  • As the chambers rotate, their volume decreases and the fluid is pressurized.
  • The pressurized hydraulic fluid is delivered to the hydraulic system.


Signs of a Bad Hydraulic Vane Pump 02-152440-8:


  • Low Hydraulic Pressure
    The pump may fail to generate sufficient pressure, causing hydraulic components to operate slowly or weakly.
  • Slow Hydraulic Operation
    Cylinders, motors, or other hydraulic components may move slower than normal.
  • Unusual Noise
    Whining, grinding, rattling, or excessive noise from the pump can indicate worn vanes, bearings, cavitation, or insufficient fluid supply.
  • Hydraulic Fluid Leaks
    Fluid leaking around the pump shaft, seals, or housing may indicate damaged seals or internal wear.
  • Overheating
    Excessive heat in the hydraulic system can occur when the pump is worn or operating inefficiently.
  • Erratic Hydraulic Movement
    Hydraulic functions may become jerky, inconsistent, or unstable because the pump is not producing a steady flow.
  • Loss of Hydraulic Power
    The equipment may struggle to lift, move, steer, or perform other hydraulic functions under normal loads.
  • Excessive Vibration
    Abnormal vibration can indicate damaged internal components, worn bearings, misalignment, or cavitation.
  • Contaminated Hydraulic Fluid
    Metal particles or other debris in the hydraulic fluid can be a sign of internal pump wear.
  • Complete Loss of Hydraulic Function
    In severe cases, a failed vane pump may stop producing sufficient flow and pressure, causing the hydraulic system to stop functioning properly.
