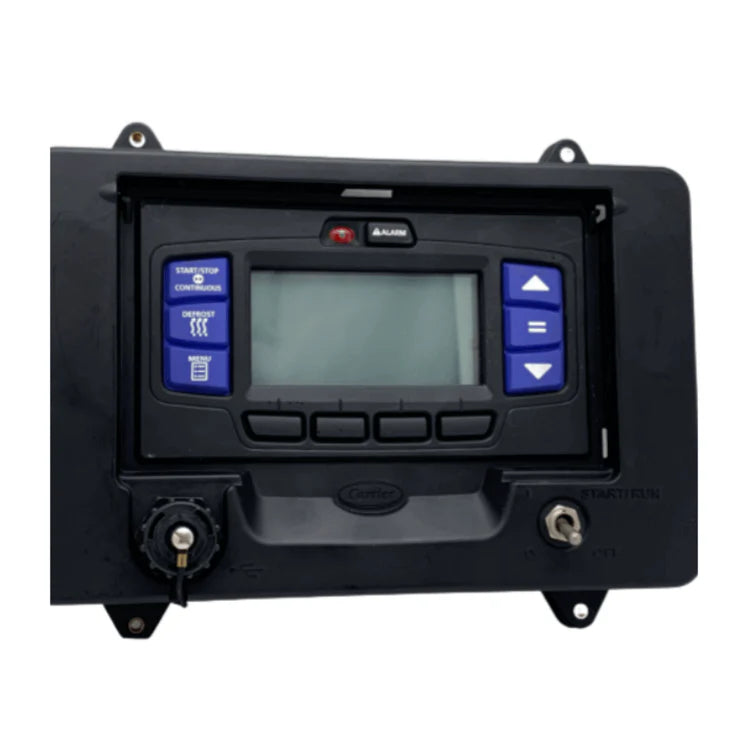

12-00663-75 | Genuine Carrier Transcold® APX Display Module Controller

1. Display Information

• Shows numerical data, text, and graphics

• Common in dashboards, engine displays, and industrial controls

• Examples: speed, RPM, fuel level, temperature, fault codes

2. Improve Safety

• Alerts operators with warnings and fault messages

• Allows for quick recognition of issues like low oil, overheating, or system malfunctions

3. Provide Real-Time Monitoring

• Displays live, up-to-date data from sensors and control modules

• Helps operators make decisions while driving or operating machinery

4. User Interaction

• Can include buttons or touch functionality for menu navigation or settings adjustments

• Simplifies control of complex systems

5. Reduce Energy and Space

• LCDs are thin, lightweight, and low-power

• Ideal for vehicles and portable devices where space and battery life are critical

1. Blank or Dead Screen

• No image appears at all

• Often caused by power issues, internal failure, or backlight failure

2. Flickering or Intermittent Display

• Screen flashes on and off randomly

• Data may appear partially or disappear intermittently

• Could indicate loose connections or failing internal circuits

3. Distorted or Garbled Images

• Numbers, letters, or graphics appear scrambled

• Lines, blocks, or static show up on the screen

• Usually caused by a failing display driver or internal electronics

4. Dim or Faded Display

• Screen is very dim even when backlight is on

• Hard to read in daylight

• May indicate backlight or inverter problems

5. Unresponsive or Frozen Display

• Numbers, gauges, or menus stop updating

• The display may freeze on one reading

• Often caused by internal processor issues or communication failure with sensors/ECU

6. Partial Display

• Only a portion of the screen works

• Sections of the LCD may be black, blank, or show vertical/horizontal lines

7. Incorrect Readings

• Shows wrong data for RPM, fuel, temperature, or engine hours

• Can mislead the operator even if other systems are fine

8. Flickering or Ghosting

• Previous images leave a faint “ghost” on the screen

• Common in older or failing LCD panels
