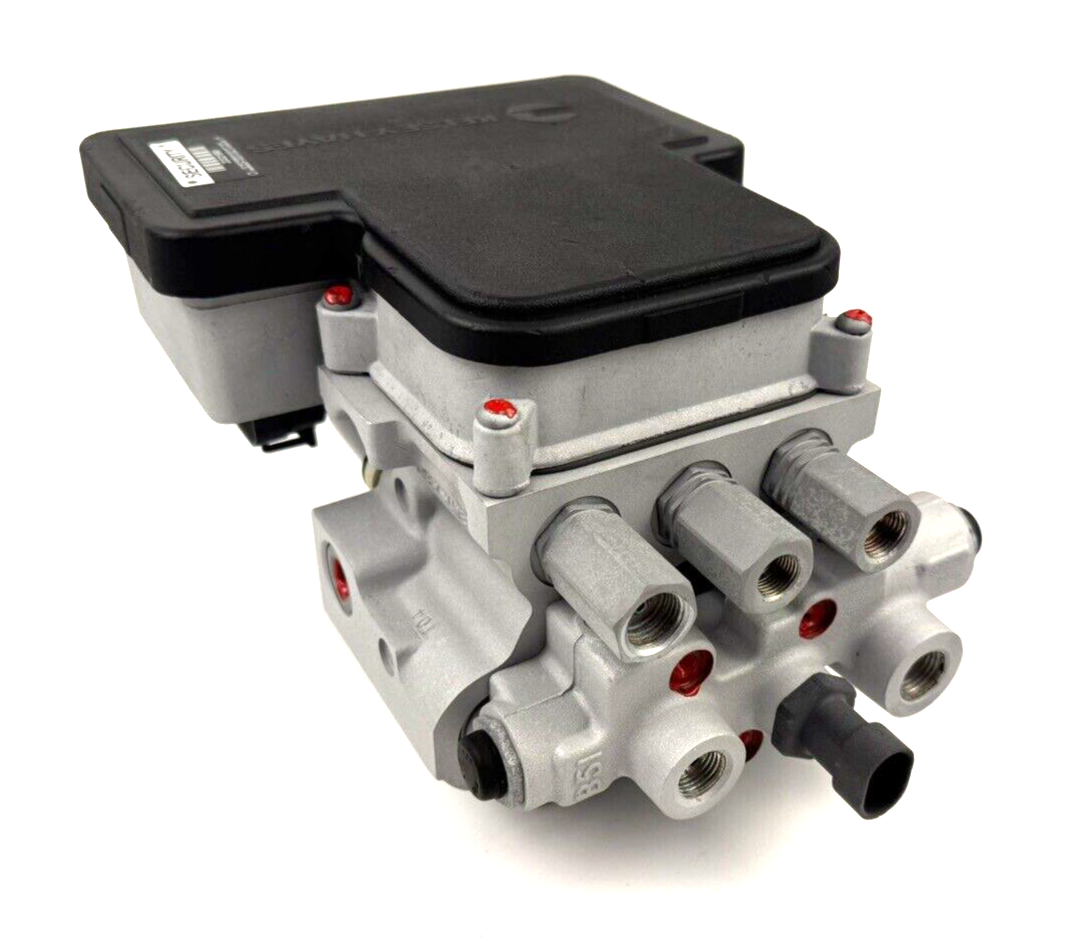

12389541 | Genuine GM® ABS Pressure Modulator Valve Assembly

1. Prevent Wheel Lock-Up

When you brake hard, a wheel can stop rotating while the car is still moving — this is called lock-up.

• A locked wheel loses traction, causing skidding.

• The ABS modulator valve rapidly reduces and reapplies brake pressure to that wheel to keep it rotating just enough to maintain grip.

2. Maintain Steering Control

Without ABS, once your wheels lock, you can’t steer — the car just slides forward.
The modulator valve lets the ABS system modulate pressure so the tires maintain traction with the road, allowing the driver to steer even while braking hard.

3. Shorten Stopping Distance (on many surfaces)

By keeping the tires on the edge of traction, the ABS can often reduce braking distance, especially on wet or slippery roads.
The modulator valve precisely controls hydraulic pressure to make this possible.

4. Balance Brake Force Between Wheels

Different wheels may have different traction (for example, one on ice, one on asphalt).
The pressure modulator valve adjusts pressure independently for each wheel so each one brakes effectively without locking.

5. Enable Other Safety Systems

Modern vehicles integrate the ABS modulator valve with:

• Electronic Stability Control (ESC)

• Traction Control System (TCS)
  These systems rely on the modulator valve to apply or release brake pressure automatically to help keep the car stable.

1. ABS Warning Light On

• The ABS light (or sometimes the brake warning light) appears on the dashboard.

• This means the ABS control module has detected a fault in the system — often with the modulator valves or pump.

• The car will usually still have normal braking, but ABS won’t function during emergencies.

2. Brakes Lock Up Under Hard Braking

• If the modulator valve fails to release pressure properly, the wheels may lock up when you brake hard.

• You might notice skidding or loss of steering control, especially on wet or slippery roads.

3. ABS Activates When It Shouldn’t

• Sometimes, a faulty valve can cause the ABS to engage randomly, even during normal braking.

• You’ll feel the pulsation in the brake pedal or hear the ABS pump running when it shouldn’t.

4. Brake Fluid Leaks or Low Pressure

• Since the modulator is part of the hydraulic system, internal leaks or damaged seals can cause brake fluid loss or reduced pressure to one or more wheels.

• The brake pedal may feel soft or spongy.

5. Unresponsive or Hard Brake Pedal

• If the solenoid valves inside the modulator get stuck, they can block fluid flow.

• This may cause the brake pedal to feel very stiff, making it hard to press or control braking pressure smoothly.

6. Unusual Noises During Braking

• You may hear clicking, buzzing, or grinding noises coming from the ABS pump/modulator area (usually near the engine bay).

• Occasional noise during ABS activation is normal — but frequent or loud noises without hard braking can mean a valve issue.

7. Diagnostic Trouble Codes (DTCs)

• A scan with an OBD-II scanner may reveal codes like:

  • C0265, C1214, C0131, etc. — all of which can point to modulator valve or pump circuit problems.
