Paccar  |  SKU: 1275102465

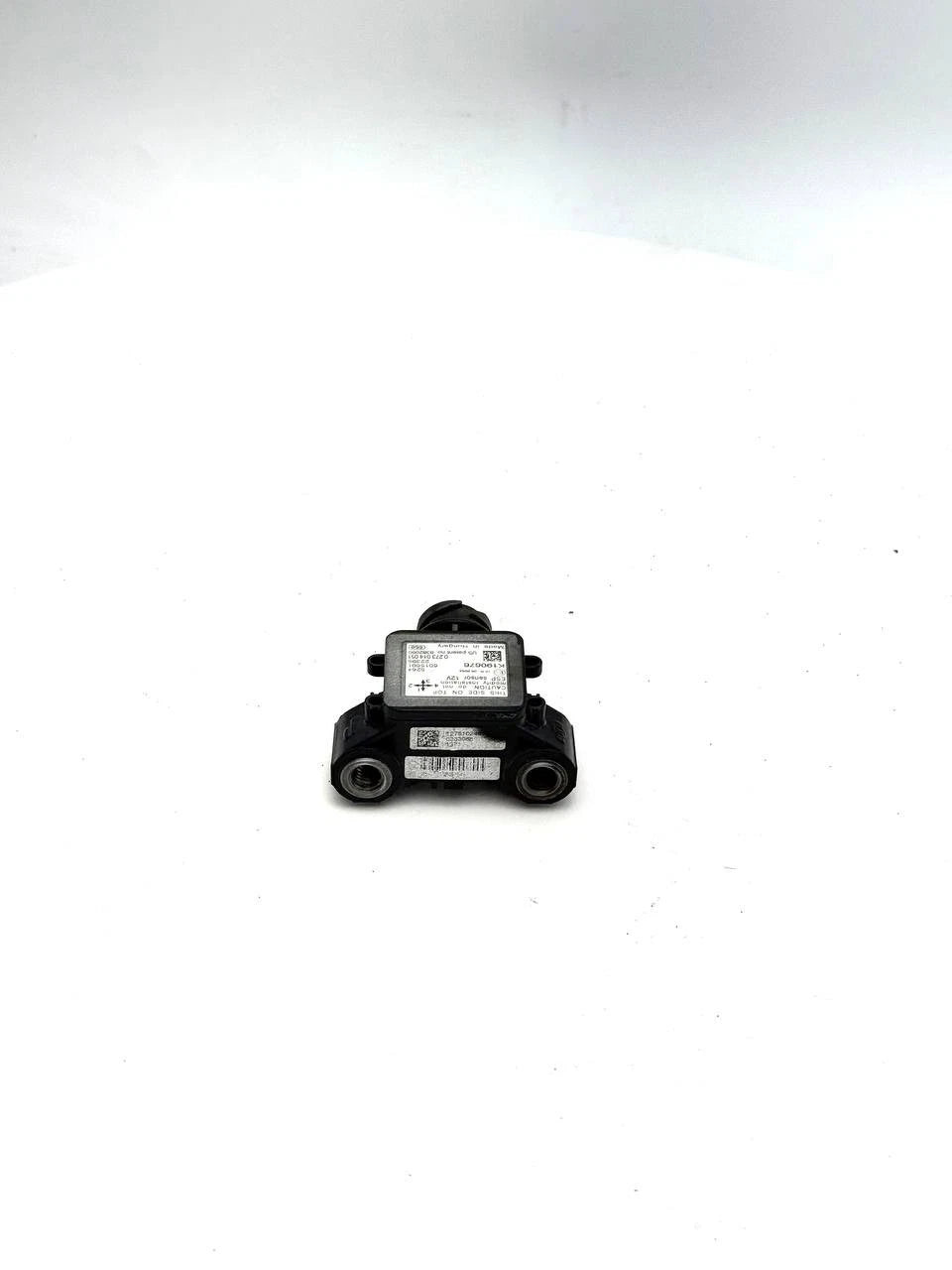

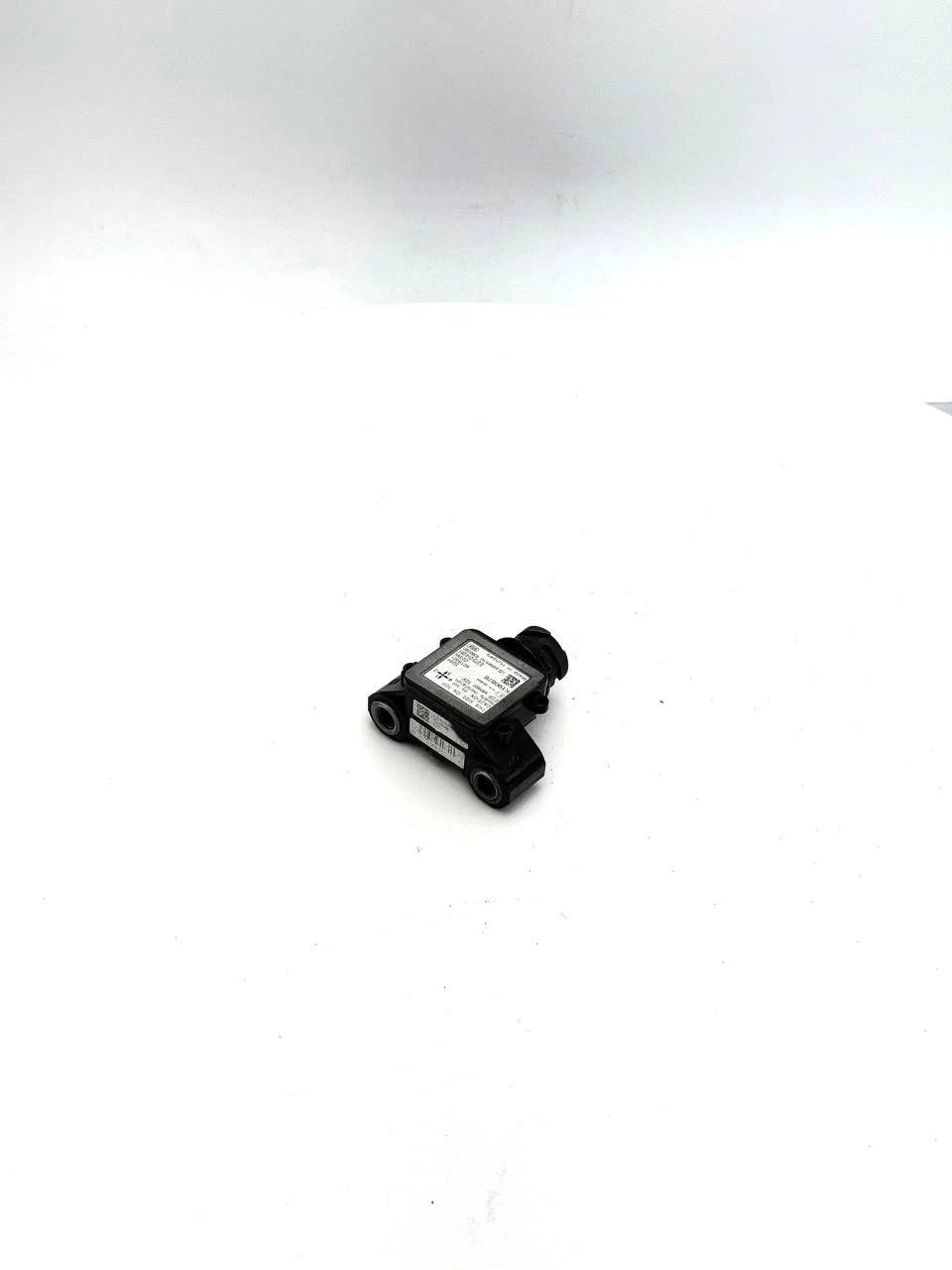

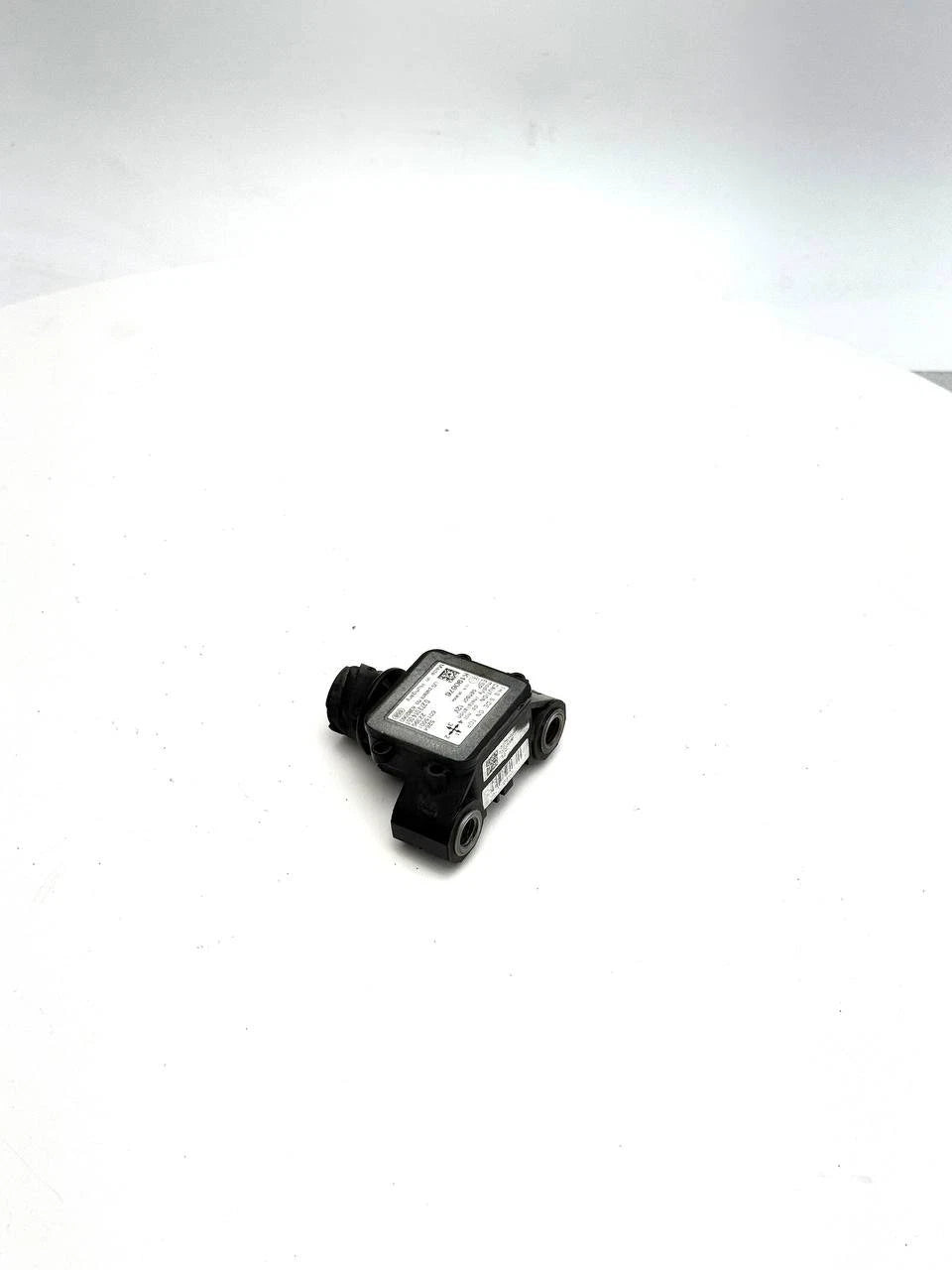

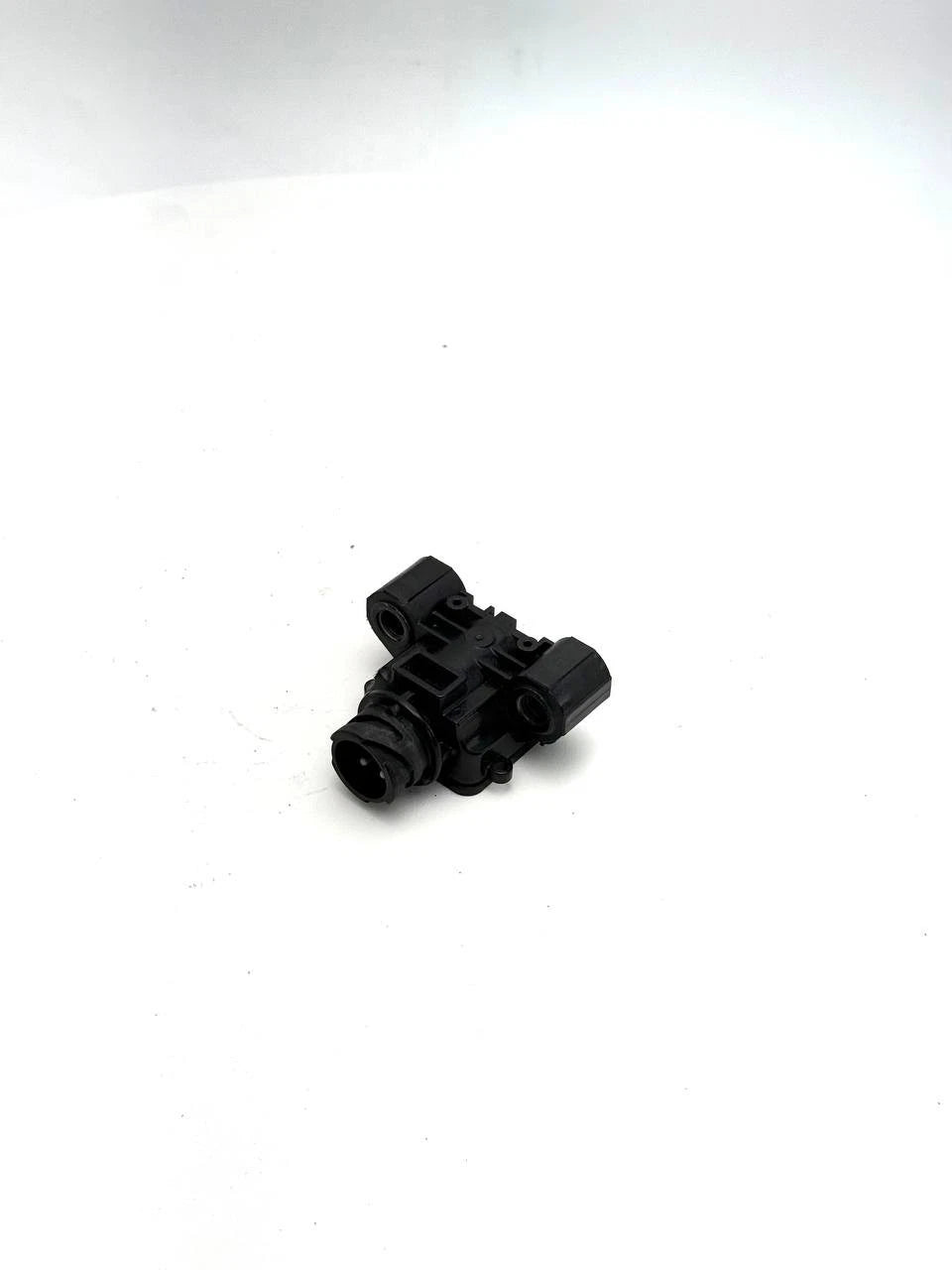

1275102465 | Genuine Paccar® Yaw Rate Sensor YAS-80X

$43900
Shipping calculated at checkout.

Need a quote?

Contact us — we’ll send you a quick and accurate offer!

  • help@forcetruckparts.com
  • +1 (828) 233-5509

Return Within 30 Days
  • The item can be returned within 30 days from the date of receipt.
  • Not satisfied? Contact us by email or phone for return instructions or exchange

Shipping Terms
  • Enjoy free shipping on orders over $100.
  • Orders placed before 6:30 PM (EST) are shipped the same day.

365 Days Warranty!

Buy safely, Returns within 30 days.

Description:
A Yaw Rate Sensor 1275102465 is a key component in modern vehicle stability systems. It measures how quickly the vehicle is rotating around its vertical axis—in other words, how fast it's turning or spinning sideways, which is called yaw. Yaw Rate Sensor YAS-80X, Electronic Stability Control, work condition, used take-off Kenworth T880 2024

Part Number: 1275102465
Condition: Used In Good Condition
Manufacture/Brand: Paccar

Fits 1275102465 For Various Kenworth/Peterbilt Trucks

Spetifications For 1275102465:

Mounting: M10 x 1.5-6H (2x)
Ingress Protection Rating: IPX6K / IPX9K
Connector Type: DIN 72585 4-Way Bayonet Plug Connector (Twist-Lock)
CAN Baud Rate: 250 Kilobaud
Operating Voltage Range: 8.2 VDC - 16 VDC
Current (Maximum): 90 mA
Maximum Operating Temperature: 185 °F (85 °C)
Minimum Operating Temperature: -40 °F (-40 °C)



Purpose of using 1275102465:

 Function  Description
Mounting Surface Secures the gear shifter to the transmission tunnel or floor.
Alignment Helps align the gear lever with the transmission linkage or selector rods.
Sealing Often includes or supports a rubber boot to seal the cab from dirt, water, or noise.
Structural Support Provides a solid base for gear shifting under force or heavy use (especially in trucks).
Isolation Can help isolate vibration or reduce gear lever movement in the cab.


Signs of a Bad Yaw Rate Sensor 1275102465:

1. Warning Lights on the Dashboard
ESC (Electronic Stability Control) light
TCS (Traction Control) light
ABS light
Check Engine Light (in some vehicles)
These lights typically come on because the ECU has detected an incorrect or missing signal from the yaw sensor.

2. Loss of Stability or Traction Control Function
Vehicle may not correct skids or oversteer as expected
ESC and traction control systems stop working
You might notice:
Poor cornering grip
No brake intervention during sudden maneuvers

3. Poor Handling or Unusual Driving Behavior
Oversteering or understeering not corrected by the system
Unusual brake application or feeling like the brakes are pulsing unexpectedly
Pulling to one side when turning or braking

4. Inconsistent ESC or TCS Operation
Systems may activate randomly, even on dry pavement
Or they may fail to activate at all when skidding or sliding

5. Diagnostic Trouble Codes (DTCs)
If you scan the vehicle using an OBD-II tool or diagnostic scanner, you might see codes such as:
Code
C1440, C1288, C0071: Yaw Rate Sensor Failure
U0125: Lost communication with yaw sensor
C0186, C0196: Stability sensor circuit malfunction


About the Manufacturer – Paccar:

PACCAR Inc is a global technology leader in the design, manufacture, and customer support of premium light-, medium-, and heavy-duty trucks. Founded in 1905 and headquartered in Bellevue, Washington, PACCAR is best known for its world-class truck brands: Kenworth, Peterbilt, and DAF.
PACCAR’s trucks are recognized for their durability, fuel efficiency, advanced engineering, and driver-focused technology. In addition to truck manufacturing, PACCAR also designs and builds diesel engines, and provides financial services, information technology, and aftermarket support to its global customer base.
