Wabco  |  SKU: 4008511520

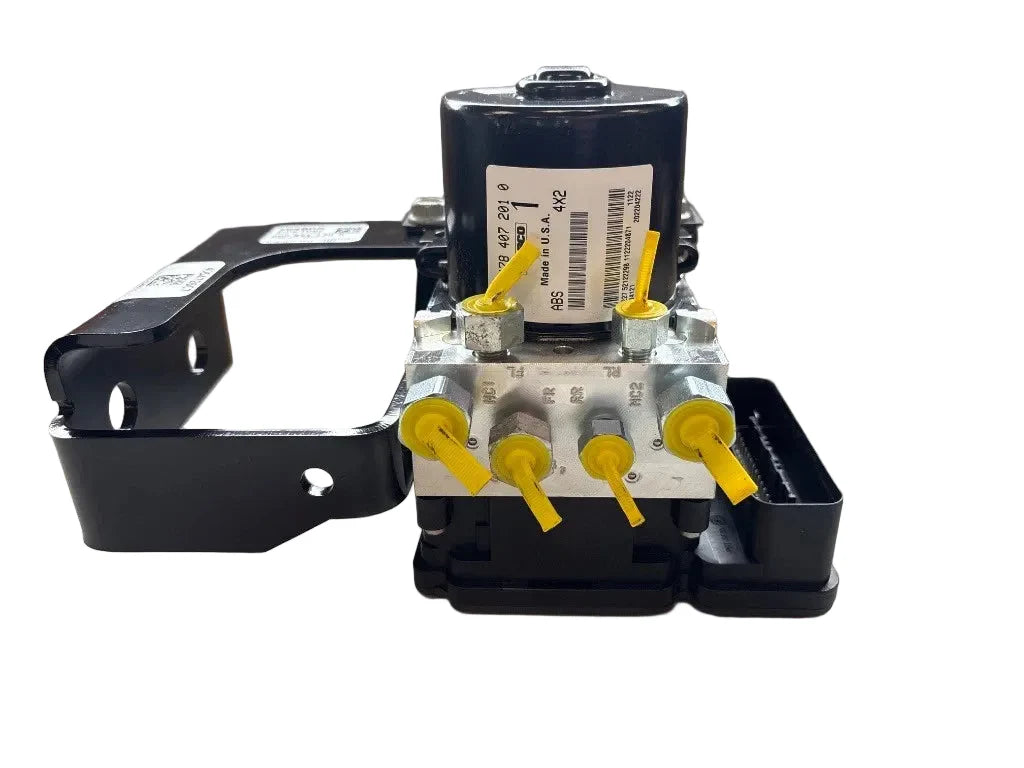

4008511520 | Genuine WABCO HABS SMARTTRAC ATC, 500K WET

$2,09900
Shipping calculated at checkout.

Need a quote?

Contact us — we’ll send you a quick and accurate offer!

  • help@forcetruckparts.com
  • +1 (828) 233-5509

Return Within 30 Days
  • The item can be returned within 30 days from the date of receipt.
  • Not satisfied? Contact us by email or phone for return instructions or exchange

Shipping Terms
  • Enjoy free shipping on orders over $100.
  • Orders placed before 6:30 PM (EST) are shipped the same day.

365 Days Warranty!

Buy safely, Returns within 30 days.

Description:
A HABS SmartTrac ATC, 500K WET 4008511520 is a WABCO hydraulic anti-lock braking system (ABS) control module and hydraulic control unit used on medium-duty commercial vehicles such as trucks, buses, and motorhome chassis. HABS SMARTTRAC ATC, 500K WET 12V Kenworth, Peterbilt, Mack, Volvo, Meritor brake system applications

Part Number: 4008511520
Condition: New
Manufacture/Brand: WABCO

Specifications For 4008511520:


  • Part type
    Premium original quality
  • Product category
    Device
  • Calculated Volume (dm³)
    10.083
  • Medium
    Brake fluid DOT 3/4
  • Port thread FL
    1/2"-20 UNF-2B
  • Port thread FR
    1/2"-20 UNF-2B
  • Port thread MF
    9/6"-18 UNF - 2B
  • Port thread MR
    9/6"-18 UNF-2B
  • Port thread RL
    7/16"- 24 UNS-2B
  • Port thread RR
    7/16"- 24 UNS-2B
  • Protection class
    IP6K9K (IEC 529)
  • Technical specification
    OE specification
  • Temperature range
    -40°C to +110°C
  • Voltage
    12 V


Fits 4008511520 For

 Kenworth, Peterbilt, Mack, Volvo, Meritor brake system applications


Purpose of using 4008511520:


  • Prevent wheel lock-up (ABS): During hard braking, it rapidly adjusts brake pressure to each wheel so the tires keep rotating instead of skidding. This helps the driver maintain steering control while braking.
  • Improve traction (ATC): If a drive wheel starts spinning on slippery surfaces such as rain, snow, mud, or gravel, the system can apply brake pressure to the spinning wheel and, on many vehicles, request the engine to reduce power. This helps the vehicle move off more effectively.
  • Distribute braking force: It electronically manages brake pressure between the front and rear wheels to improve braking efficiency and stability.
  • Support vehicle stability: Depending on the vehicle configuration, the SmartTrac platform can include functions such as Electronic Stability Control (ESC), Drag Torque Control (DTC), and Hill Start Aid (HSA) to help reduce skidding and improve control in emergency maneuvers.


Signs of a Bad HABS SMARTTRAC ATC 4008511520:


  • ABS warning light stays on
    • The ABS lamp remains illuminated after startup.
    • The system disables ABS but normal hydraulic braking usually still works.
  • ATC (Traction Control) warning light
    • The traction control light stays on or flashes when it shouldn't.
    • The ATC function may be disabled.
  • Diagnostic trouble codes (DTCs)
    • A scan tool compatible with the WABCO/ZF HABS system may report faults such as:
      • Internal ECU failure
      • Hydraulic pump motor fault
      • Solenoid valve fault
      • Wheel speed sensor circuit faults
      • Power or ground faults
    • These codes help determine whether the SmartTrac unit itself is faulty or if the problem lies elsewhere.
  • ABS doesn't activate during hard braking
    • Wheels lock up on slippery roads instead of pulsing.
    • The vehicle may skid more easily during emergency braking.
  • Traction control doesn't work
    • Drive wheels spin excessively on wet, snowy, or loose surfaces.
    • The system no longer intervenes to reduce wheel spin.
  • Brake pedal feels abnormal
    • Spongy or inconsistent pedal feel.
    • Pedal pulsation when it shouldn't occur.
    • A hard pedal in some failure modes.
  • Hydraulic pump runs continuously or not at all
    • You may hear the ABS pump running longer than normal.
    • Or the pump never runs when commanded.
  • Intermittent warning lights
    • ABS and ATC lights come and go, often caused by:
      • Internal module faults
      • Poor electrical connections
      • Corroded connectors
      • Low system voltage


About the Manufacturer – Wabco:

WABCO (originally the Westinghouse Air Brake Company) is a global leader in vehicle control systems for commercial vehicles such as trucks, buses, and trailers. Founded in 1869 and later becoming a part of ZF Friedrichshafen AG in 2020, WABCO is best known for pioneering advanced braking, stability, and suspension technologies.
