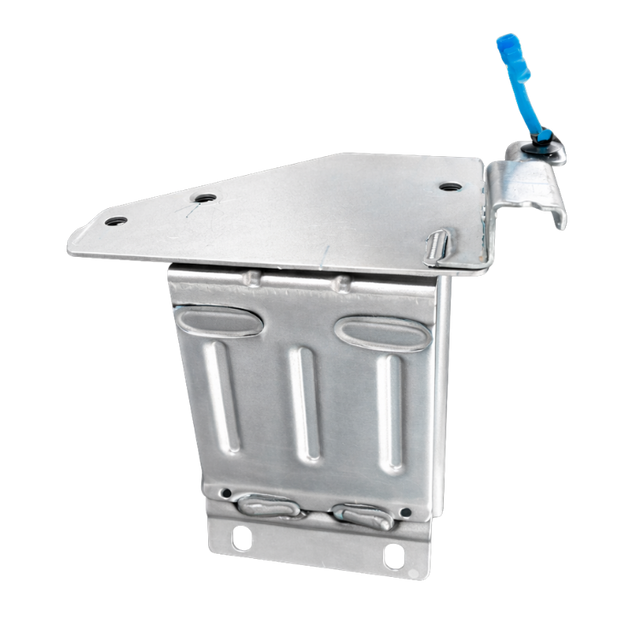

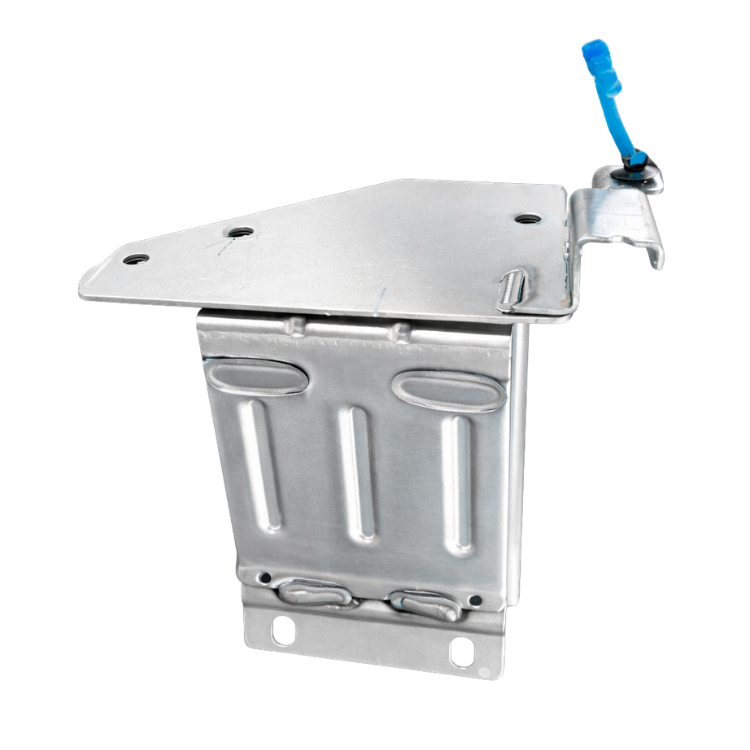

4394226 | Genuine Cummins® Sensor Bracket For ISX/QSX

A sensor bracket 4394226 is a mounting component used to secure a sensor in place—whether that's on a machine, wall, vehicle, or other structure. It's essentially a support or frame that holds a sensor in the right position and orientation so it can function accurately. Sensor Bracket For For Cummins engine EPA13 15 liter ISX/QSX engines, B6.7, 2018-2024

General Specifications

Purpose & Function

• Correct Positioning & Alignment

  • Ensures the sensor is aimed in the right direction (e.g., toward a target object or area).

  • Maintains consistent distance from the object being measured or detected.

• Secure Mounting

  • Prevents the sensor from moving due to vibration, impact, or gravity.

  • Keeps it fixed even in challenging environments (industrial, automotive, outdoor).

• Protection

  • Reduces the risk of mechanical damage or wear.

  • Some brackets offer partial shielding from debris, water, or other hazards.

• Ease of Installation & Maintenance

  • Brackets make it easier to install, remove, or adjust the sensor.

  • Helpful in systems that require regular calibration or part replacement.

• Adaptability

  • Many brackets are adjustable, so you can fine-tune sensor angle, height, or distance as needed.

  • Some are designed for different surfaces (walls, poles, equipment frames).

Signs of a Bad Sensor Bracket

1. Sensor Misalignment

• Sensor is pointing in the wrong direction

• Inaccurate or inconsistent readings

• Missed detections or false triggers

2. Loose or Wobbly Mounting

• Sensor shifts or vibrates during operation

• Makes noise or rattles

• Affects accuracy, especially in high-precision or motion-sensitive applications

3. Physical Damage

• Bracket is bent, cracked, or corroded

• Warping or deformation over time

• Sensor hangs or droops instead of staying fixed

4. Improper Fit

• Sensor doesn’t sit securely in the bracket

• Bracket doesn't match the sensor model or mounting holes

• Uses makeshift attachments (e.g., tape, zip ties)

5. Poor Material Quality

• Rusting (for metal brackets in outdoor or humid environments)

• UV degradation (for plastic brackets exposed to sunlight)

• Brittle plastic that snaps easily

6. Limited Adjustability

• Can't fine-tune the angle, height, or position

• No way to recalibrate after installation

• Fixed mount causes issues in dynamic or variable settings

7. Interference with Sensor Operation

• Bracket blocks part of the sensor’s field of view (especially for cameras, LiDAR, or motion sensors)

• Reflective surfaces cause signal bounce or false readings (for IR or ultrasonic sensors)

About Cummins

Cummins is a leading American manufacturer of diesel and natural gas engines, as well as power generation systems and emissions solutions. Founded in 1919 and headquartered in Columbus, Indiana, Cummins is known globally for its durable, high-performance engines used in trucks, buses, construction equipment, agriculture, and power systems.

The brand is widely respected for its innovation in clean diesel technology, including aftertreatment systems, turbochargers, and advanced electronics that help reduce emissions while maximizing engine efficiency and reliability.
