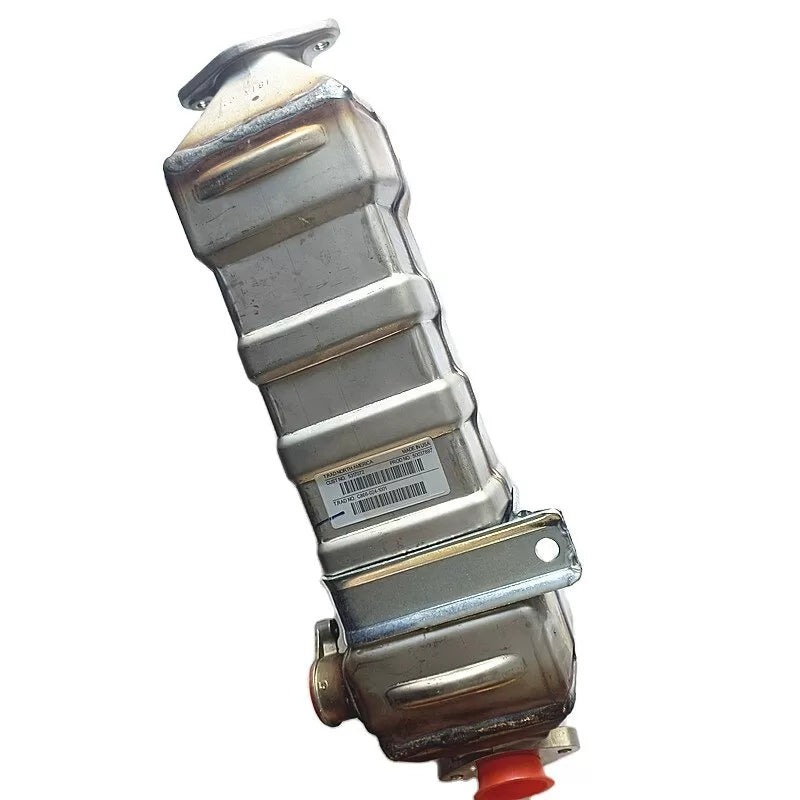

5254314 | Genuine Cummins® EGR Cooler Kit For Cummins 6.7L

• Color: Grey
• End 1 Inside Port Diameter: 42mm
• End 1 Mount Hole Quantity: 2
• End 1 Type: Flange
• End 2 Inside Port Diameter: 35mm
• End 2 Mount Hole Quantity: 2
• End 2 Type: Flange
• Flanged: Yes
• Gasket or Seal Included: Yes
• Gasket Or Seal Required: Yes
• Grade Type: Regular
• Heat Exchanger Type: Fin
• Inlet Inside Diameter: 1.65"
• Mounting Hole Diameter: 11.5mm
• Outlet Inside Diameter: 35"
• Overall Height: 422.5mm
• Overall Width: 136mm
• Made Of Stainless Steel

• Freightliner 108SD (2012-2017)
• Freightliner B2 (2011-2017)
• Freightliner M2 106 (2011-2017)
• Freightliner MB Line (2012-2017)
• Freightliner MC Line (2012-2017)
• Freightliner MB Line (2012-2017)
• Freightliner MT45 (2011-2017)
• Freightliner MT55 (2011-2017)
• Freightliner S2C (2013-2017)
• Freightliner XB Line (2012-2015)
• Freightliner XB Straight Rail (2011-2017)
• Freightliner XC Lowered Rail (2011-2017)
• Freightliner XC Modular Rail (2011-2017)
• Freightliner XC Raised Rail (2011-2017)
• Freightliner XC Straight Rail (2011-2017)
• Blue Bird All American FE (2011-2017)
• Blue Bird All American RE (2011-2017)
• Blue Bird All Vision School Bus (2011-2017)
• Blue Bird SHL All American (2017)
• Capacity Of Texas Sabre 5 (2016-2017)
• Capacity Of Texas TJ5000 (2011-2017)
• Capacity Of Texas TJ6500 (2011-2017)
• Capacity Of Texas TJ9000 (2011, 2014, 2016-2017)
• Autocar LLC. Xpert (2012-2017)
• Autocar LLC. Xpert On Road (2012-2017)
• International 4300 (2014-2017)
• International 4300LP (2016-2017)
• International 7300 (2016-2017)
• Gillig Low Floor (2011-2017)

1. Cools Exhaust Gas

Hot exhaust gases are passed through the cooler, where coolant absorbs the heat.
This reduces the gas temperature significantly.

2. Lowers Combustion Temperatures

When the cooled exhaust gas is mixed with the fresh air entering the engine:

• The peak combustion temperature drops

• This reduces harmful NOx (nitrogen oxide) emissions

3. Protects the Engine

Cooler exhaust gas helps prevent:

• Engine knock

• Overheating

• Premature wear on engine components

• One of the most common symptoms

• Caused by coolant leaking into the exhaust system and burning off

• Smoke often has a sweet smell

2. Coolant Loss With No Visible Leak

• Coolant level drops over time

• No external drips because coolant is leaking inside the EGR cooler and going out the exhaust

3. Engine Overheating

• A failed cooler disrupts coolant flow

• Can cause the engine to run hot or overheat under load

4. Check Engine Light or EGR Codes

Common fault codes include:

• EGR flow insufficient

• EGR cooler efficiency

• EGR temperature sensor problems
  The ECM detects abnormal gas temperatures or incorrect EGR flow.

5. Poor Engine Performance

• Reduced power

• Rough idle

• Turbo lag

• Hesitation during acceleration
  If the cooler is clogged with soot, EGR flow becomes restricted.

6. Excessive Exhaust Back Pressure

• Caused by a clogged EGR cooler

• Can trigger turbo-related faults

• May cause the engine to run louder than usual

7. Sweet Smell From Exhaust

• Coolant entering the exhaust produces a sweet, antifreeze-like odor

8. Steam Coming From Exhaust

• Severe coolant contamination can create steam clouds, especially on startup

9. Contaminated Coolant

• Oil or soot mixing into coolant

• Coolant turns dark or sludgy
