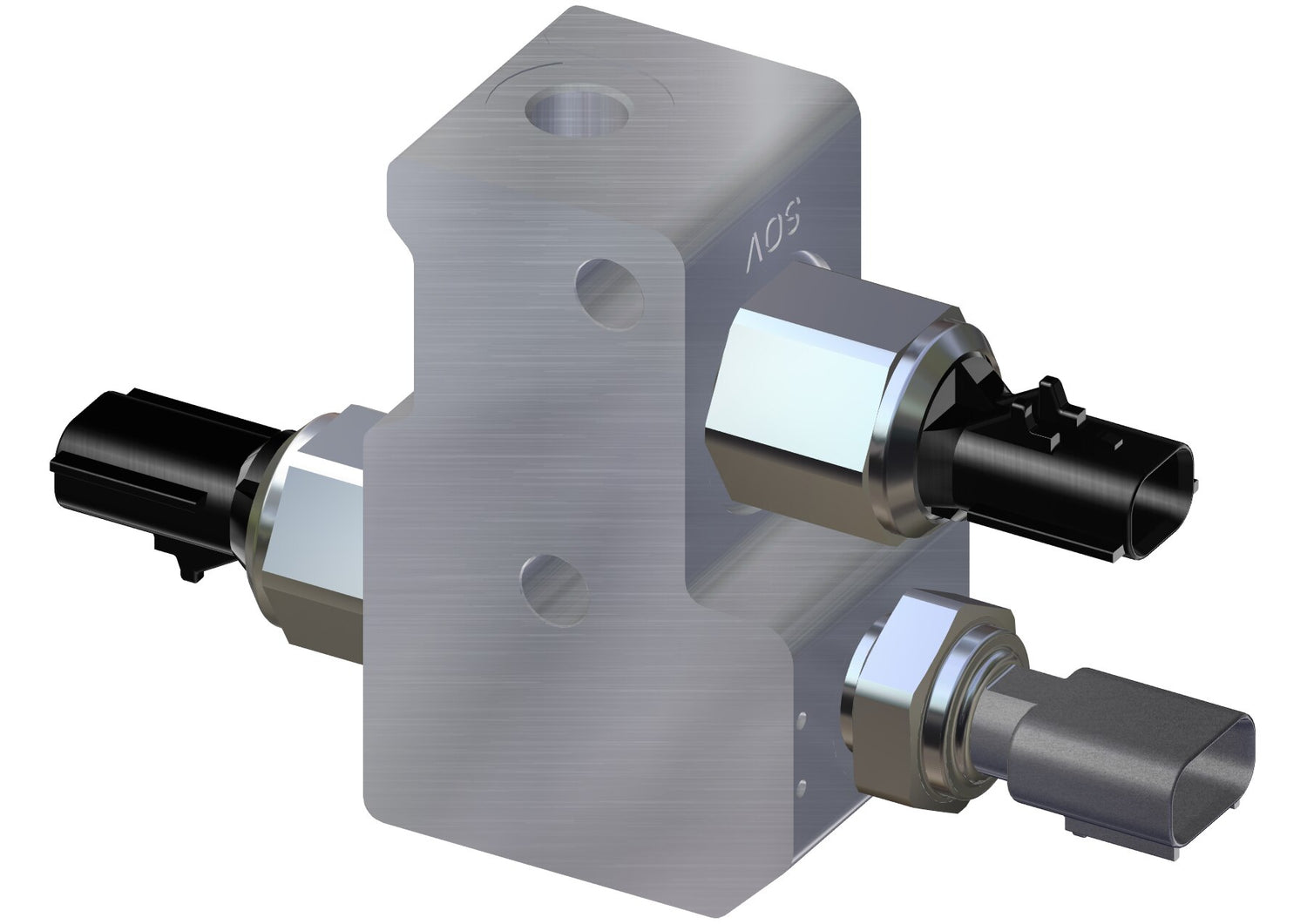

5308312 | Genuine Cummins® Doser Fluid Shutoff Valve

1. Control DEF Flow to the SCR System

• The valve opens only when DEF is needed for emissions reduction.

• When the engine doesn’t need DEF, the valve stays closed to prevent unnecessary flow.

This ensures precise dosing, which is critical for SCR systems to convert NOx into nitrogen and water efficiently.

2. Prevent Backflow or Leaks

• Stops DEF from flowing backward into the tank or lines.

• Maintains system pressure in the dosing pump and lines.

• Prevents unwanted DEF spills that could cause corrosion or damage.

3. Protect the Doser Pump and Injector

• By shutting off flow when not needed, it prevents the pump from running against closed lines.

• Reduces wear and tear on the injector and pump, extending their life.

4. Improve System Efficiency

• Reduces DEF waste

• Ensures accurate DEF delivery to meet emissions standards

• Helps the vehicle maintain compliance with environmental regulations

1. DEF System Warning Lights

• Check Engine or DEF system warning light comes on.

• Warnings may say:

  • “DEF System Malfunction”

  • “Doser Valve Fault”

  • “SCR Efficiency Below Threshold”

2. Engine Enters Limp Mode

• Some modern diesels reduce engine power or limit speed if DEF flow is compromised.

• This happens to prevent emissions violations or system damage.

3. Abnormal DEF Consumption

• Too much DEF being used – valve stuck open

• Too little DEF – valve stuck closed

• Both indicate improper control of DEF flow.

4. DEF Pump or Injector Faults

• The doser pump may run dry or overwork if the shutoff valve is stuck closed or open.

• This can trigger related diagnostic trouble codes (DTCs).

5. Leaks or Drips Around the Valve

• Visible DEF leaking near the valve or lines

• Corrosion or crystallized DEF can appear if the valve fails to seal properly

6. SCR Efficiency Issues

• Poor NOx reduction

• Failed emissions tests (for commercial vehicles)

• Reduced system performance
