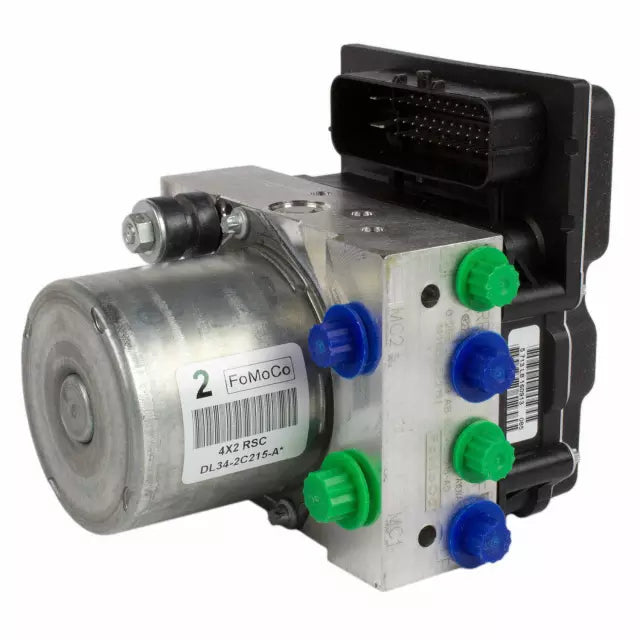

DL3Z-2C215-B | Genuine Ford® ABS Hydraulic Assembly 2013-2014 F-150

1. Prevent wheel lock-up

• During hard braking, wheels can stop rotating and skid.

• The hydraulic assembly modulates brake fluid pressure to prevent this.

• Result: safer braking and shorter stopping distance on slippery surfaces.

2. Maintain steering control

• If wheels lock, you lose the ability to steer.

• ABS hydraulic assembly adjusts pressure to keep wheels turning just enough for steering.

3. Support ABS and stability systems

• Works with the ABS control module to activate brakes individually.

• Enables Electronic Stability Control (ESC) and traction control in modern cars.

4. Balance braking pressure

• Can increase, decrease, or hold pressure at individual wheels.

• Prevents over-braking on one wheel and keeps braking smooth and controlled.

5. Improve safety on slippery surfaces

• Wet, icy, or uneven roads can cause skidding.

• The hydraulic assembly reacts hundreds of times per second to maintain grip.

1. ABS warning light stays on

• Most common and earliest warning

• Indicates a fault in the ABS system, often the hydraulic unit

2. Brake pedal feels abnormal

• Spongy, soft, or low brake pedal

• Hard or unresponsive brake pedal

• Pulsations even when ABS isn’t active

3. Unusual brake behavior during stopping

• Brakes lock up under hard braking

• Uneven braking between wheels

• Car pulls to one side while braking

4. Noise from the brake system

• Pumping or whirring sounds when braking

• Usually caused by the pump or solenoids inside the hydraulic unit

5. Reduced ABS performance

• ABS doesn’t activate when it should (e.g., slippery surfaces)

• Skidding occurs even though ABS light is off

6. Multiple ABS or brake system fault codes

• OBD-II codes like:

  • C0220–C1234 (wheel sensor/valve/pump errors)

  • C0265, C0275 (hydraulic unit solenoid faults)

• Codes may point directly to the ABS hydraulic unit
