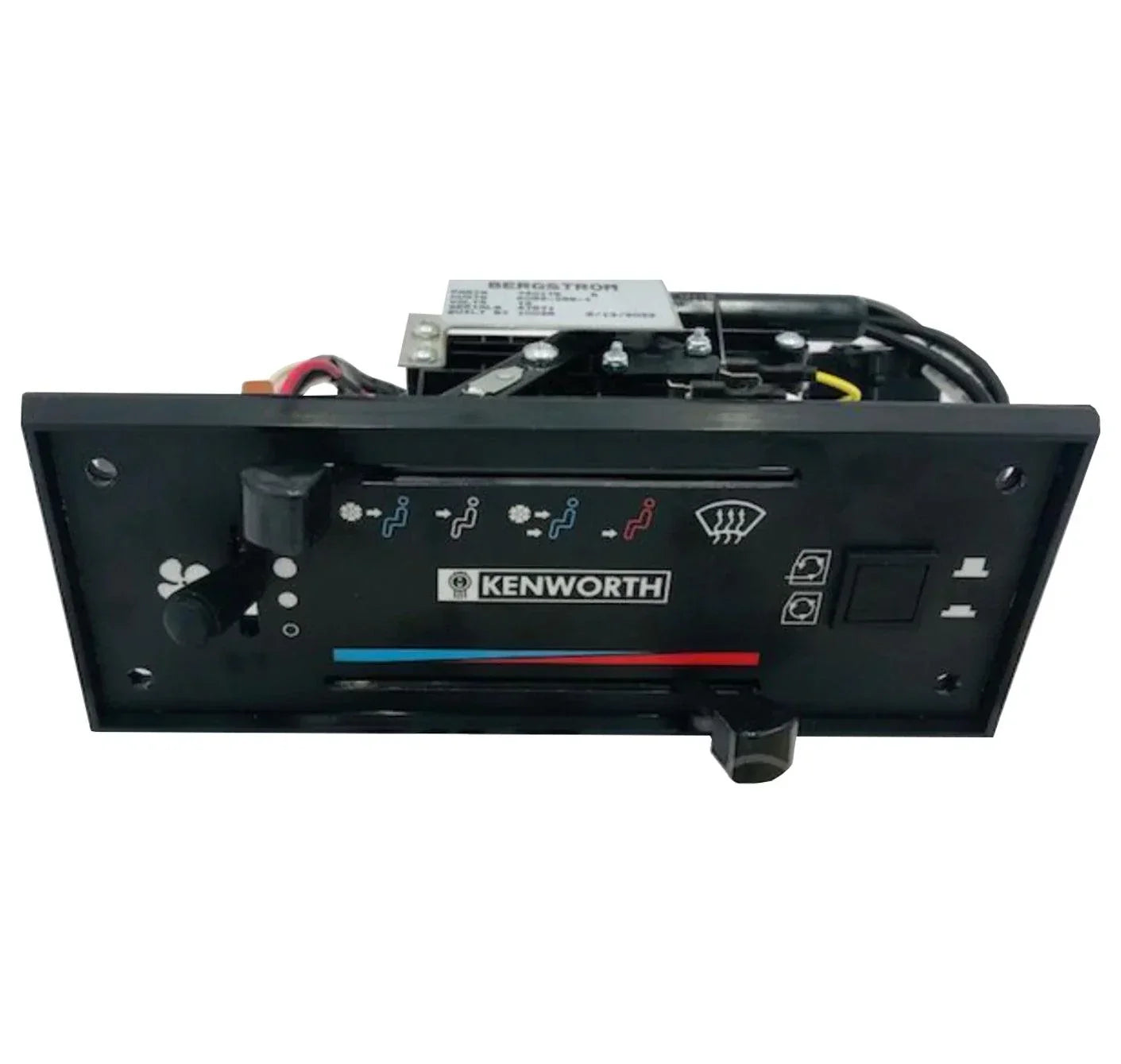

K0923511 | Genuine Kenworth® HVAC Heater Control Assembly

Kenworth C500
Kenworth W900 series (W900B, W900L, W900S)
Kenworth T-series:

• • T300
  • T400
  • T450
  • T600
  • T800

1. Regulates cabin temperature precisely

• Allows fine adjustment of heating and cooling

• Prevents overheating or overcooling

• In automatic systems, it maintains a set temperature by adjusting A/C, heat, and fan speed on its own

Why it matters: Stable cabin temperature keeps the driver comfortable and focused over long hours.

2. Controls airflow and distribution

• Directs air to face, floor, defrost, or sleeper vents

• Balances airflow between cab and sleeper

• Ensures even air circulation

Why it matters: Proper airflow avoids hot/cold spots and improves overall comfort.

3. Manages defrost and defog functions

• Activates windshield defrost

• Uses A/C to remove moisture from the air

• Keeps windows clear in rain, snow, or cold weather

Why it matters: Clear visibility is a critical safety function, not just comfort.

4. Integrates multiple climate systems

In modern trucks, the control panel can manage:

• Engine-driven A/C

• Cab heater core

• Sleeper HVAC

• Auxiliary heaters (hydronic or air heaters)

• Engine-off climate systems

Why it matters: One panel coordinates everything so systems don’t conflict or overload.

5. Improves energy efficiency

• Reduces unnecessary A/C or heater use

• Optimizes fan speed and compressor operation

• Helps limit engine idling

Why it matters: Saves fuel, reduces wear, and lowers operating costs.

6. Enhances driver safety and alertness

• Comfortable temperature reduces fatigue

• Prevents drowsiness caused by heat

• Maintains concentration during long hauls

Why it matters: Climate control directly affects driver performance and safety.

7. Provides system feedback and diagnostics

• Displays operating status

• Shows warning lights or fault codes

• Helps identify HVAC system problems early

Why it matters: Early detection prevents bigger, more expensive failures.

1. Temperature won’t change

• Stuck on full hot or full cold

• Turning the knob or pressing buttons does nothing
  Cause: Failed internal switch, control module, or signal output

2. A/C or heat won’t turn on

• Compressor doesn’t engage

• Heater doesn’t respond
  Cause: Panel not sending the “on” command, bad relay signal, or internal electronics failure

3. Fan speed control not working

• Fan only works on one speed

• No fan at all
  Cause: Faulty fan control circuit or panel interface failure

4. Airflow direction won’t change

• Air stuck on defrost, floor, or vents
  Cause: Panel not controlling blend/door actuators properly

5. Display issues

• Blank screen

• Flickering or dim display

• Missing segments or unreadable icons
  Cause: Power supply issue inside the panel or failing circuit board

6. Buttons or knobs unresponsive

• Buttons must be pressed hard

• Knobs spin freely or feel loose
  Cause: Worn contacts, broken potentiometers, or physical damage

7. Intermittent operation

• Works sometimes, fails other times

• Changes settings on its own
  Cause: Loose wiring, cracked solder joints, internal board failure

8. Defrost not working properly

• Windshield fogs up and won’t clear
  Cause: Panel failing to command defrost mode (major safety issue)

9. Fault codes or warning lights

• HVAC error codes displayed

• Blinking lights on the panel
  Cause: Communication failure between panel and HVAC control module

10. No response from auxiliary systems

• Sleeper heater or hydronic heater won’t activate

• Engine-off climate system not responding
  Cause: Panel not communicating with auxiliary HVAC components
